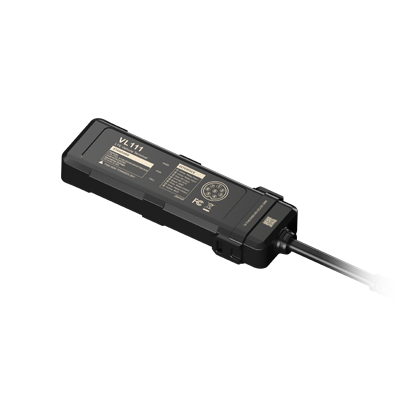

4G LTE Hardwired Tracker for Motorbike

Introducing the 4G LTE Hardwired Tracker for Motorbike – a state-of-the-art 4G LTE tracking terminal designed for precision, reliability, and comprehensive vehicle management. This compact device comes equipped with a built-in GNSS module that supports GPS and BeiDou, offering real-time vehicle location tracking. Whether you are managing a fleet or monitoring a single vehicle, the 4G LTE Hardwired Tracker for Motorbike is your ideal solution for ensuring security and efficiency.

Key Features:

Advanced Network Communication
- 4G LTE & GSM Connectivity: Ensures seamless communication with 4G LTE networks and provides 2G GSM fallback for areas with limited 4G coverage.

Remote Vehicle Immobilization
- Cut-Off Capabilities: Remotely cut off the fuel or power supply via the integrated PCB relay, allowing operators to immobilize the vehicle instantly in case of an emergency or unauthorized use.

Driver and Vehicle Safety Alerts
- External Buzzer Support: Alerts the driver to speeding or reckless driving and provides audible notifications for various alerts, enhancing driver safety and vehicle security.

Precision Positioning Systems
- Multi-System GNSS Support: Utilizes GPS, BeiDou, GLONASS, and LBS positioning systems to provide highly accurate location data, ensuring precise vehicle tracking at all times.

Battery Management and Protection
- Vehicle Battery Protection: Automatically disconnects from the vehicle's power supply when a low external battery level is detected, switching to its internal battery to prevent vehicle battery drain.

Rugged and Durable Design
- IP66 Water & Dust Resistance: Built to withstand harsh environments, the VL111’s rugged design ensures continued optimal performance even in the toughest conditions.

Additional Capabilities
- Historical Trip Playback: Enables operators to review historical trip data, providing valuable insights for optimizing routes and managing driver behavior.

Why Choose the 4G LTE Hardwired Tracker for Motorbike?
The 4G LTE Hardwired Tracker for Motorbike is engineered for those who require dependable vehicle tracking and management. Its combination of advanced features, robust construction, and reliable network connectivity makes it an indispensable tool for fleet managers and individual vehicle owners alike. Enhance your vehicle management strategy with the 4G LTE Hardwired Tracker for Motorbike – where precision meets reliability.

Specifications:

Tracking Terminal Specifications

Positioning & Location

- Technology: GPS, GLONASS, BDS, AGPS, LBS
- Accuracy: < 2.5m CEP
- Tracking Sensitivity: –165dBm
- Acquisition Sensitivity: –148dBm
- TTFF (Open Sky):
- Avg. hot start ≤ 2 sec
- Avg. cold start ≤ 38 sec

Cellular

- Technology: LTE Cat 1, 2G (GSM)
- Frequency:
- VL111S_LA:
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28
- GSM: B2/B3/B5/B8
- VL111S_EM:
- LTE-FDD: B1/B3/B7/B8/B20/B28
- LTE-TDD: B34/B38/B39/B40/B41
- GSM: B2/B3/B5/B8

Interface

- LED Indication: GNSS (Blue), Cellular (Green), Power (Red)
- SIM: Nano-SIM
- Digital I/Os: ACC, Buzzer (Optional)
- Analog I/Os: N/A
- Voltage Detection: 0–90V
- Memory Capacity: 3000 GPS data entries
- USB: Type-C
- Number of Onboard Relays: 1
- GNSS Antenna: Internal
- Bluetooth Antenna: Internal
- Serial Ports: N/A

Features

- Voice Monitoring Range: N/A
- Sensors: Accelerometer
- Scenarios: Vibrating alert, Speed alert, Tamper alert, Geo-fence entry/exit alert, Vehicle battery protection, Remote immobilization, Power disconnection alert, Low internal battery alert
- Driving Behavior Analysis (DBA): Harsh acceleration, Harsh braking, Harsh cornering, Collision
- Bluetooth: BLE 5.0
- Configuration Support: PC Tools, SMS, Tracksolid Pro
- Certification: CE, FCC
- Input Voltage: DC 9-90V
- Power Consumption:
- Standby: < 5mA
- Working: < 50mA

Operating Environment

- Operating Temperature: –20℃ to +70℃
- Operating Humidity: 5% to 95%, non-condensing
- IP Rating: IP66

Physical Specification

- Dimensions: 92.0 x 28.0 x 14.0 mm
- Weight: 42.9 g

Optional Configuration

- SM Connector: Buzzer
- SIM IC: 2.5 x 2.7 mm onboard
- Optional configuration required to be customized or purchased separately.
